Suitable for Residential and Light Commercial Use
The VRV S High Efficiency Series (Variable Refrigerant Volume) achieves high energy efficiency with a variety of function for comfort and high performance. It is ideal for environments where space is limited thank to the low height casing and long piping length.
This outside unit utilizes water as a heat source. Temperatures of the heat source water can range from 10℃ to 45℃, and heating performance is not affected by ambient temperature.
The compact size saves space in mechanical rooms.
Low Height Casing Design
With a low profile height of 870mm for all outdoor models, it provides superior performance without being obtrusive.
VRT Smart Control
Optimally supply only for the needed capacity of indoor units.
High Voltage Shield PCB
VRV S models can operate between 198V to 264V and it can also withstand peak electrical loads up to 440V.
DK-BIM
A software that helps consultants and architects select VRV systems more appropriately and easily to enable more efficient operation.

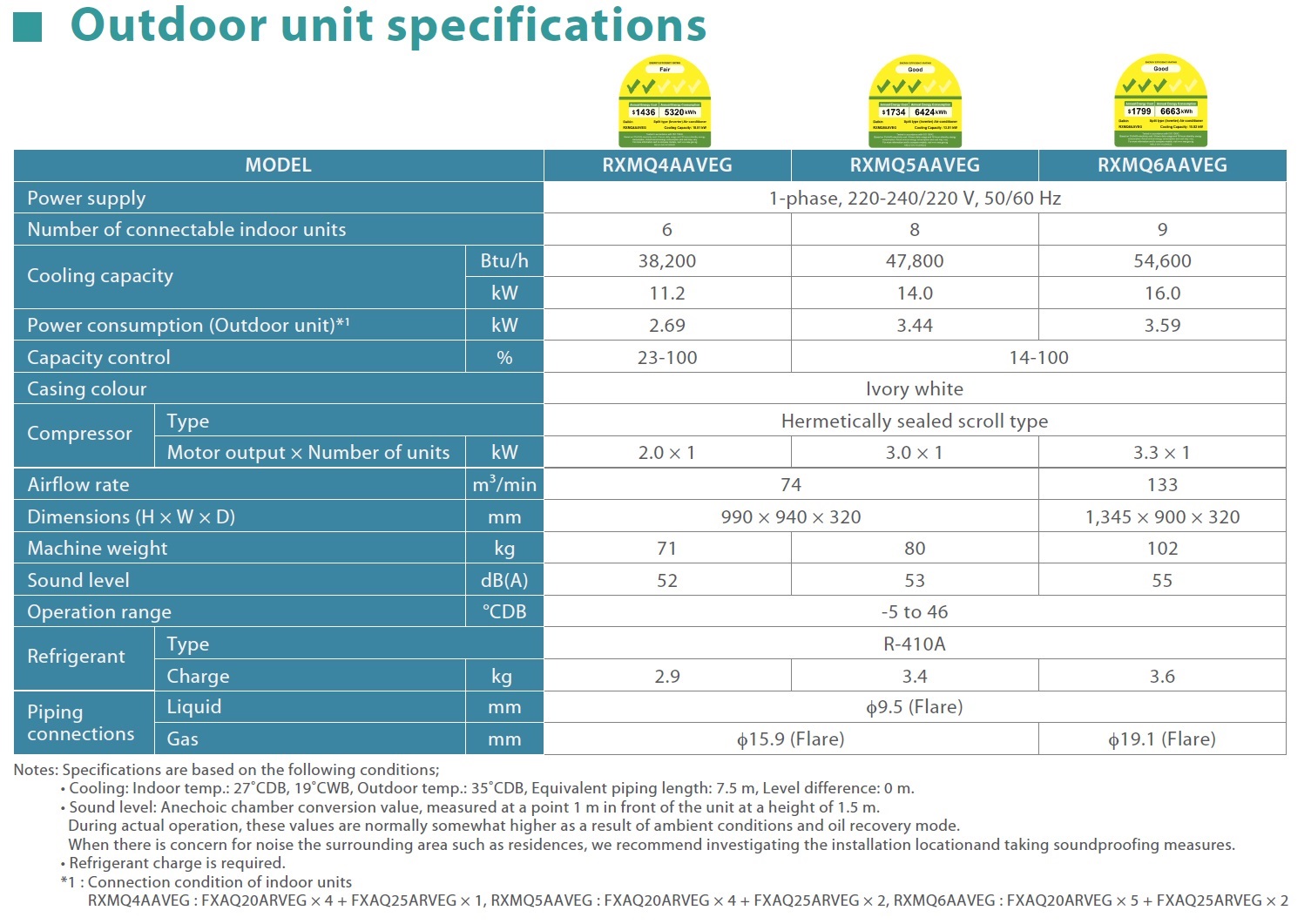

VRV S (4-6HP)

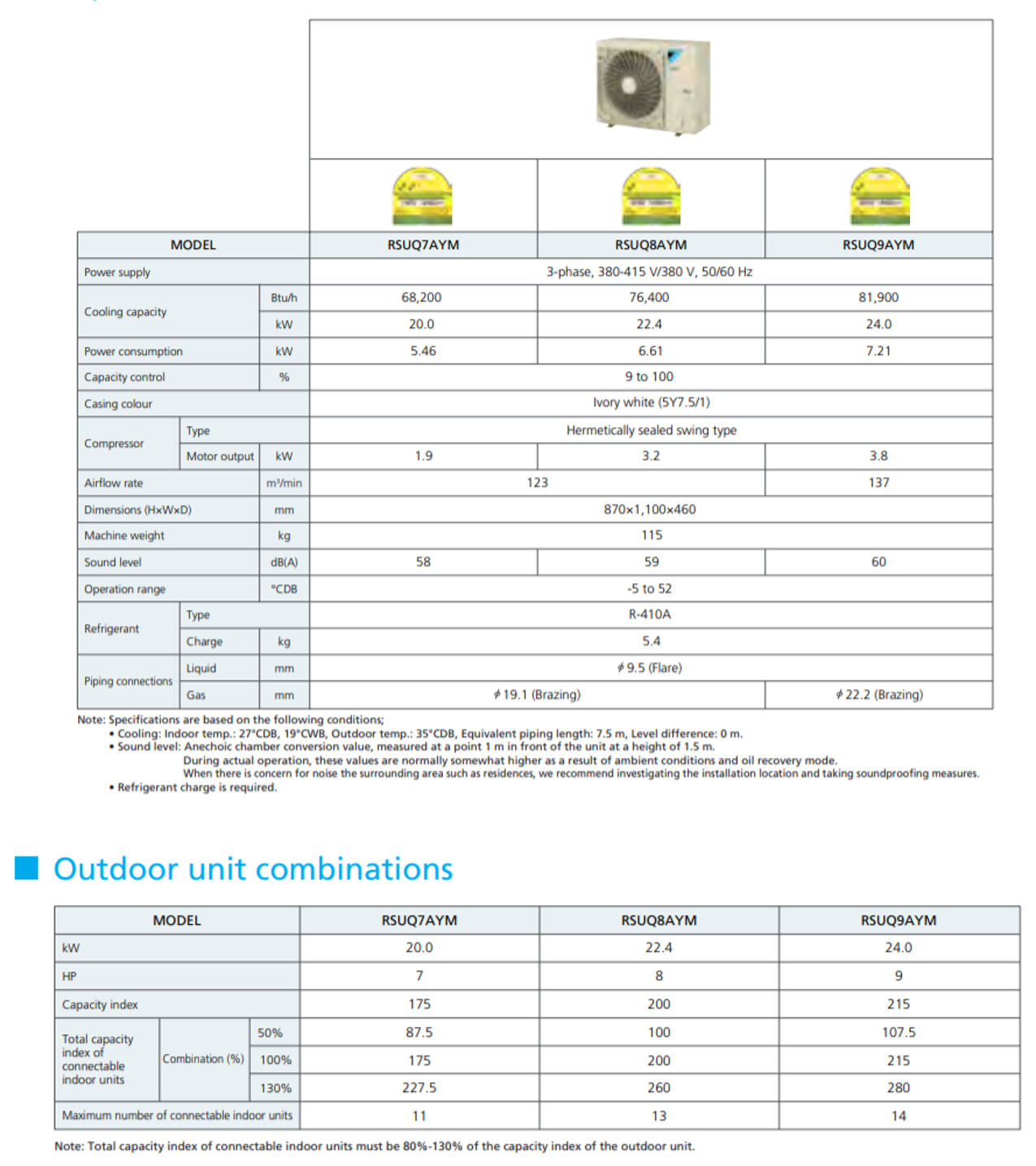

VRV S (7-9HP)
